Metrics
The Metrics tab (below the log) shows what the log measures, without any setup. Click Refresh to look again after the log grew.
What it finds

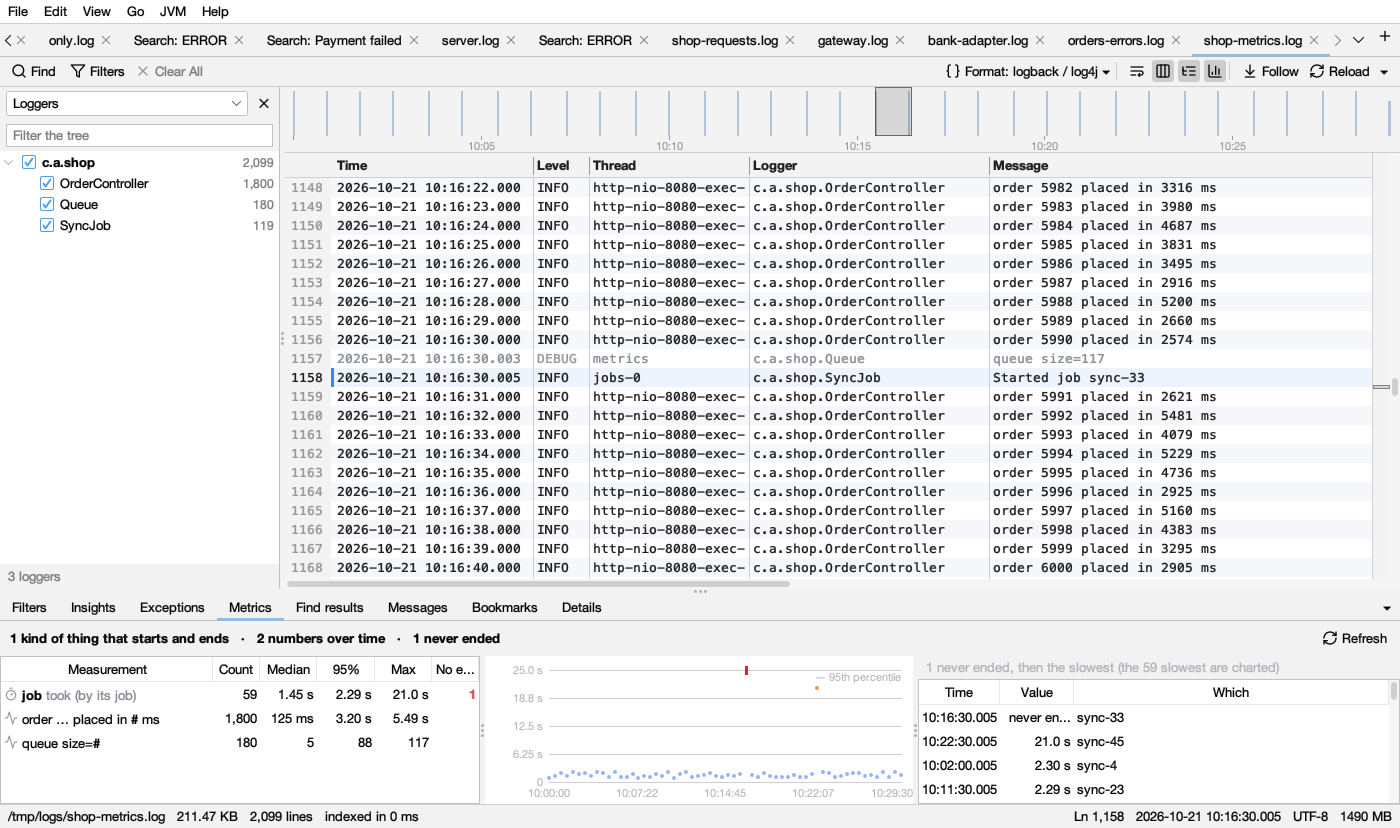

- Things that start and end: message kinds that open and close something (Started job sync-7 … Finished job sync-7, Processing request r-12 … Completed request r-12) are found by their words. Lines are paired by the value they share (the job, the request), or else by thread. The list says which: took (by its job) or took (by thread). Hover for the two messages.
- Numbers in messages: a number with a unit after it (
ms,s,MB,%,rows), or a word like took, size, latency or queue before it: order … placed in # ms, queue size=#. Order numbers and IDs are not measurements. A message kind needs 20 lines or more. Durations are in milliseconds and sizes in bytes, whatever unit each line used. - Columns of a CSV file, a JSON log or a layout with columns (see below).
Columns
When a log has columns, its columns are measured too:
- A column of numbers (with a unit, or more than 12 different values) is a measurement: duration_ms, bytes, latency, the access log’s size. The unit comes from the value (7 ms, 1.5 s, 2 KB) or from the column’s name (
_ms,_s,_bytes,_kb,_pct; duration, latency, elapsed and took are taken as milliseconds). Columns that number things rather than measure them are left out, whatever their name says: IDs, ports, years, and numbers that only go up (a row number, an offset, a clock). - A column with a few values (2 to 12, such as status or host) gives, for each of its most frequent values, how many rows have it in each stretch of time: Host = web-1, rows per minute. The stretch fits the log: per second for a log of a minute, per hour for a day. This needs times in the log. At most two such columns, the ones with the fewest values. Insights doesn’t report these (the timeline shows busy times).

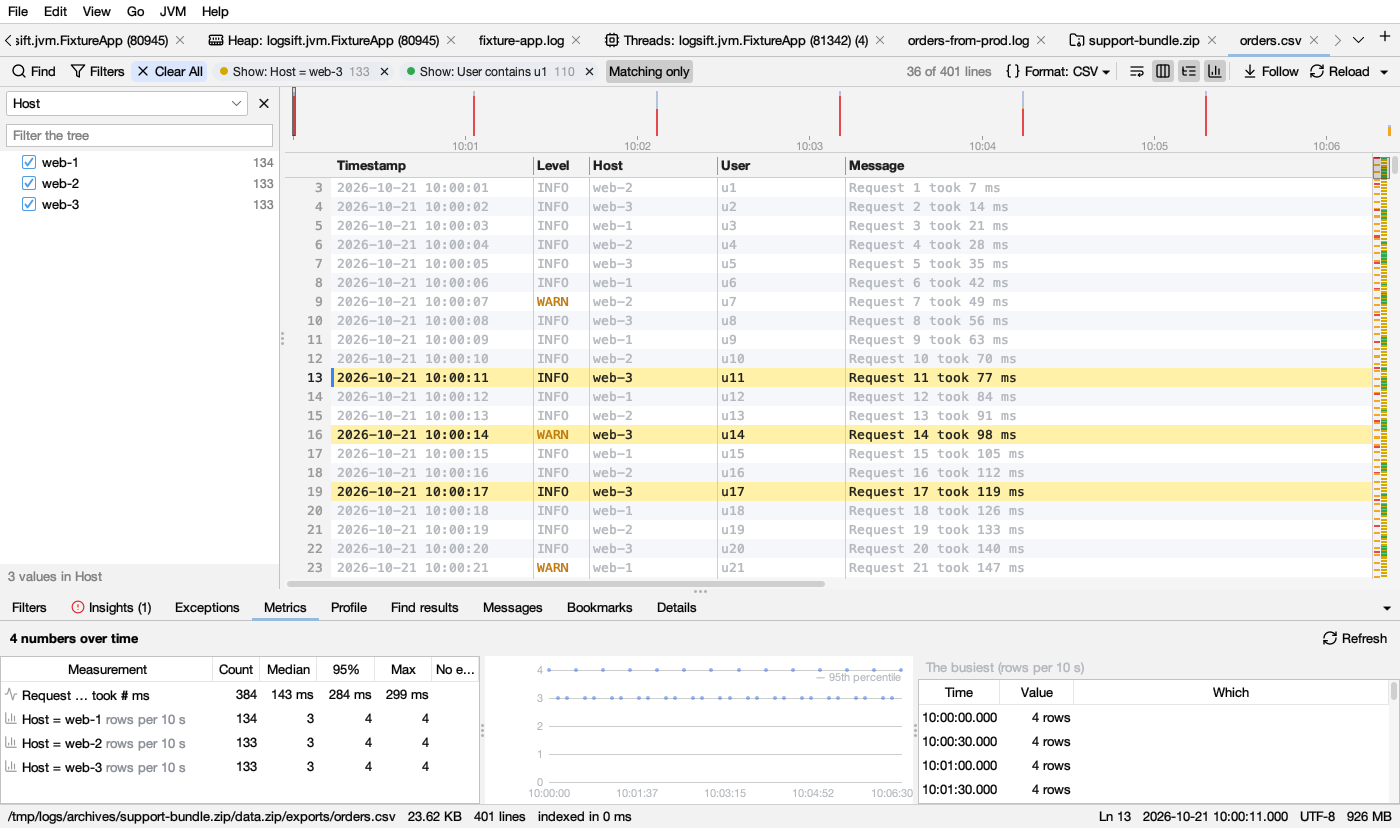

- Time, level, thread, logger and message columns are not measured this way; the message is still read for numbers (above). In a CSV file only the message column is read for them, so a measurement is named by the message (Request … took # ms), once for all levels.
A column needs 20 rows or more. On big logs every n-th row is read, as for numbers in messages.
With filters

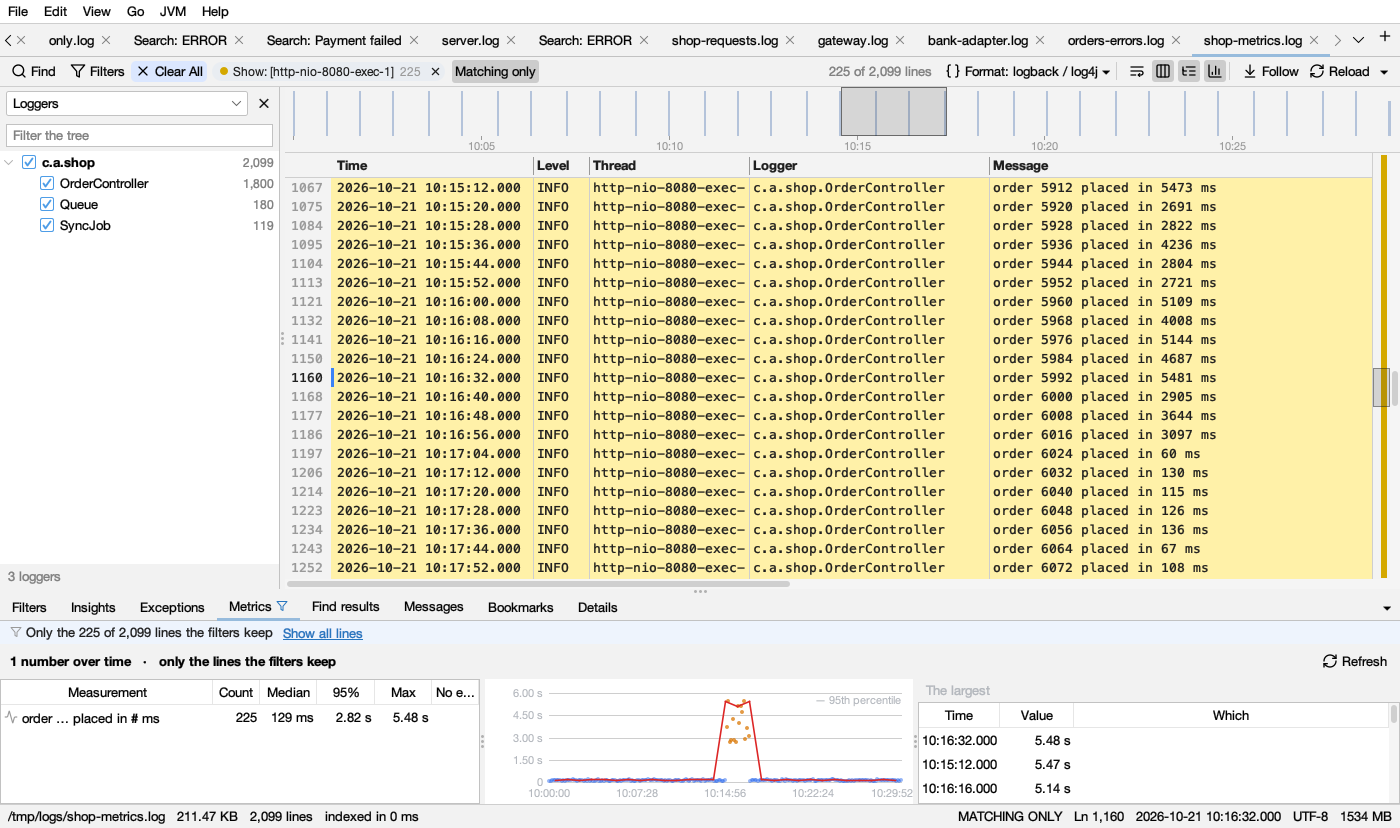

With Matching only on and filters set (or a time range picked on the timeline), Metrics counts only the lines the filters keep. The tab’s name then has a filter icon, and a strip at the top says how many lines are counted, with Show all lines (see Which tabs follow the filters). It follows the filters as they change. Turn Matching only off to see the whole log again.
- Things that start and end are paired over the whole log first, so a filter doesn’t split a start from its end. A span counts when its start line is kept.
- Numbers in messages and columns of numbers count the values on the kept lines.
- Rows per stretch of time count the kept rows.
- A measurement with nothing left on the kept lines is not listed.
- The list of message kinds always comes from the whole log, and the log isn’t read again when only the filters change: switching filters is quick.
- Insights always look at the whole log.
The list
| Column | Shows |
|---|---|
| Measurement | A timer icon for things that start and end, a line icon for numbers in messages, a columns icon for a column of numbers, a bar icon for rows per stretch of time. The # marks the measured part |
| Count | How many |
| Median | Half are below this |
| 95% | 95 in 100 are below this |
| Max | The largest |
| No end | Things that started and never ended, in red. Often what hung |
The chart
Select a measurement for a chart over time. Hover a dot for its time and value; click it to go to its line.
| Mark | Light | Dark | Means |
|---|---|---|---|
| blue dots | Each value | ||
| orange dots | A value 3 times the median or more: far above usual | ||
| red line | The 95th percentile over time (with 40 values or more) | ||
| red marks along the top | Things that started then and never ended | ||
| small triangles at the top | Values too big for the chart’s height |
How to read it: a red line that climbs means things got slower for most, not just a few. A cloud of orange dots at one time is a slow spell: compare it with the timeline and Insights.
Beside the chart
The lines that never ended, then the slowest (or largest) ones: Time, Value, Which. For rows per stretch of time, the busiest stretches (12 rows). Click one to go to its line (for a stretch, its first row with that value).
In Insights
Insights reports what never ended (1 job started and never ended) and when a measurement (in a message or a column of numbers) was far above usual (High: order … placed in # ms, 10:15:00 – 10:16:59: the median of that stretch was 3 times the usual median or more), with Show these minutes and Show in Metrics. For files over 512 MB this is worked out when the Metrics tab is opened.
